Hinged mesh
We bring to your attention a hinged mesh made of galvanized steel wire.
This steel mesh is designed for fencing large areas of agricultural areas, nurseries, reserves, wildlife sanctuaries, forestry, hunting grounds (aviaries), roads and railways.
The design feature of this mesh is that it is twisted in a special way, with a hinge node, and this made it possible to make different heights of the cells on one running meter, in the lower part of the mesh several times less than in the upper one, which prevents the penetration and migration of small and large animals, as well as unauthorized access to the fenced area of a person.

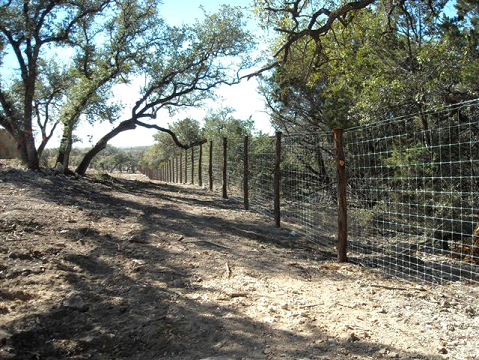

Applications:
- roads and railways
Источник: www.mogilevavtodor.by
- питомники, заповедники, заказники
- agricultural objects and territories
Variants of the mesh sheet format with a mesh width of 150 mm:
Options for the format of the mesh fabric with a mesh width of 50 mm:
Other format options are possible upon agreement with the customer.
Options for the manufacture of fencing from a hinged mesh with a height of more than 2.4 m.
Main technical characteristics of the produced mesh:
Technical conditions of hinged nets can be viewed here..
Characteristics of the wire used:
For the manufacture of meshes, wire is used from low-carbon galvanized steel in accordance with GOST 3282, heat-treated (for vertical streams), thermally untreated (for horizontal streams).
| Тип проволоки в сетке | Galvanized Low Carbon Steel Wire | |||
|---|---|---|---|---|
| For medium mesh | For heavy mesh | |||
| Diameter, mm | Minimum tensile strength, N / mm2 | Diameter, mm | Minimum tensile strength, N / mm2 | |
| Extreme horizontal (longitudinal) wire | 2,5 | 600 | 3,0 | 600 |
| Horizontal (longitudinal) wire | 2,0 | 600 | 2,5 | 600 |
| Horizontal (longitudinal) wire | 2,0 | 400 | 2,5 | 350 |
- The maximum height of the mesh (roll) produced is 2.4 m;
- The maximum amount of horizontal (longitudinal) wire in the produced mesh - 23 pcs;
- Mesh hole heights: 6x75, 11x100, 3x150, 2x200 mm;
- Hole width: 50mm, 100mm, 150mm, 200mm;
- Roll length: 50 m, depending on wire thickness 100 m possible.
Example of mesh designation when ordering:
Articulated mesh made of wire with a diameter of 2.5 mm, with a zinc coating, with vertical mesh sizes: 75mm (6 mesh), 100mm (11 mesh), 2x150mm (2 mesh), defining 20 horizontal solid wires, mesh width 150mm, with a net width in a roll of 1.85 m and a length of 50 m:
Articulated mesh SH - 2,5 - Ц - 50 - 1850/20/150 ТУ BY 700090744.001-2011.
Suggested sizes of articulated mesh:
| Data from mesh symbol, width / number of solid wires / mesh width | Number of vertical cells - vertical cell size, mm | Mesh width and maximum deviations in width (roll height), mm | Length of nets and maximum deviations along the length of the roll, mm | Section of the used wire, mm | |
|---|---|---|---|---|---|
| 2,5-3,0 | 2,0-2,5 | ||||
| 1050/13/150 | 6-75, 6-100 | 1050±3,3 | 50000±100 | ||
| 1250/15/150 | 6-75, 8-100 | 1250±3,3 | |||
| 1550/18/150 | 6-75, 11-100 | 1550±3,9 | |||
| 1550/15/150 | 11-100, 3-150 | 1550±3,9 | |||
| 1850/20/150 | 6-75, 11-100, 2-150 | 1850±4,6 | |||
| 1850/16/150 | 10-100, 3-150, 2-200 | 1850±4,6 | |||
| 1950/17/150 | 11-100, 3-150, 2-200 | 1950±4,6 | |||
| 2000/21/150 | 6-75, 11-100, 3-150 | 2000±4,6 | |||
| 2400/23/150 | 6-75, 11-100, 3-150, 2-200 | 2400±5,5 | |||
| 1050/13/50 | 6-75, 6-100 | 1050±3,3 | - | ||
| 1250/15/50 | 6-75, 8-100 | 1250±3,3 | - | ||
| 1550/18/50 | 6-75, 11-100 | 1550±3,9 | - | ||
| 1550/15/50 | 11-100, 3-150 | 1550±3,9 | - | ||
| 1550/15/50 | 7-100, 3-150, 2-200 | 1550±3,9 | - | ||
| 1850/20/50 | 6-75, 11-100, 2-150 | 1850±4,6 | - | ||
| 1850/16/50 | 10-100, 3-150, 2-200 | 1850±4,6 | - | ||
| 1950/17/50 | 11-100, 3-150, 2-200 | 1950±4,6 | - | ||
| 2000/21/50 | 6-75, 11-100, 3-150 | 2000±4,6 | - | ||
| 2400/23/50 | 6-75, 11-100, 3-150, 2-200 | 2400±5,5 | - | ||
The hinged mesh is mounted on wooden or metal posts.
It is possible to supply a fence complete with:
- poles galvanized or painted with chemically resistant paint with hinged mesh fastening elements;
- a set of equipment for mounting the articulated mesh;
- a set of tools for mounting the articulated mesh.
The cost of metal poles with fasteners:
| Name | Size: width / height / thickness, mm | Net height, m | Post length, m | The minimum cost per piece. without VAT, rub. |
|---|---|---|---|---|
| Galvanized post | 60x40x2 | 2,0 | 3 | Для уточнения стоимости звонить в отдел маркетинга 80-(225)-72-05-85 80-(225)-43-53-66 |
| Pole painted with chemical resistant paint | 60x40x2 | 2,0 | 3 | Для уточнения стоимости звонить в отдел маркетинга 80-(225)-72-05-85 80-(225)-43-53-66 |
| Galvanized post | 60x40x2 | 2,4 | 3,4 | Для уточнения стоимости звонить в отдел маркетинга 80-(225)-72-05-85 80-(225)-43-53-66 |
| Pole painted with chemical resistant paint | 60x40x2 | 2,4 | 3,4 | Для уточнения стоимости звонить в отдел маркетинга 80-(225)-72-05-85 80-(225)-43-53-66 |
As a related product, our company has the ability to offer you metal posts of any section (at the request of the customer) with fastening elements.
